helloearth.info ~ Electicity for Health ~ Specifications for the Silver Pulser

Electricity for Health
Silver Pulser
Specifications

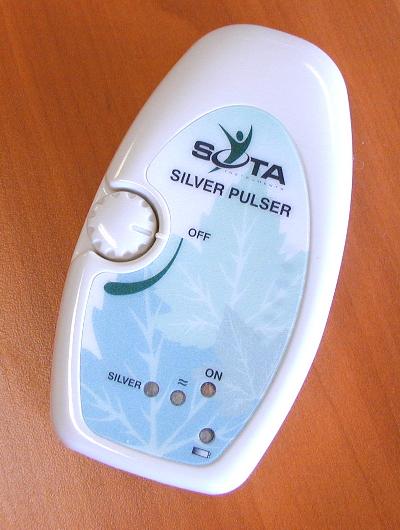

The Silver Pulser

Bio-Stimulator (Plant Growth Stimulator)
and
Ionic Colloidal Silver Generator

MODEL ~ SP5

This is a dual function unit

1) Bio-Stimulator
2) Ionic/Colloidal Silver Generator

The Silver Pulser is a professionally designed quality unit,
thoroughly tested on an oscilloscope, and is guaranteed to operate per the specifications.

The Silver Pulser uses only the highest quality .9999 Pure Fine Silver Electrodes.
See Certificate of Compliance for Silver Wire Purity.

The Silver Pulser generates the finest quality Ionic Colloidal Silver
at a rate of 5-8 ppm (part per million) in 2 Hours for 16 ounces of distilled water,
with an Ionic Colloid silver particle size that is mostly ions, with colloidal particles
in the range of 0.005 - 0.015 microns (Verified on a Scanning Electron Microscope).

Features:

A unique circuit design allows The Silver Pulser to operate from a single 9 Volt alkaline battery.
Original plans actually called for the use of 7 batteries in the design. Our state-of-the-art electronic
design utilizes a proprietary DC-DC converter which boosts the output of the 9 Volt battery to the 31 Volts DC required by The Silver Pulser.

Constant-Voltage Output - Unique circuitry maintains the required 31 Volts output regardless of
battery voltage or other input power. Thus, as the battery runs down or if the input voltage fluctuates, the output will maintain the 31 Volts. No other unit can offer this very important feature.

We use only the purest, Fine Silver Wire Electrodes, 4 Nine Grade (.9999 pure) for the Ionic-Colloid Silver production.

Output monitoring circuit and indicator.

Our Electrical Circuit Boards are GOLD Plated for extreme reliability and workmanship.

3 Year Parts and Labour Warranty on all internally mounted components.
Replacement Fine Silver Wire Electrodes and Probes are available.

Disclaimer:
SOTA Products are not intended to cure or treat any specific disease and been evaluated by any Government for safety or effectiveness.
Government regulators consider testimonials to be misleading and deceptive and recommend you consult a medical doctor for the treatment of all diseases. Results using the SOTA Products will vary for each person. The SOTA Team

Saturn Earth Connection
introduction

Michael Connection

Urantia Connection

NASA Connection

Riley Connection

Drink Ozone Water

Nikola Tesla

Electricity for Health
Silver Pulser Specifications

Color Light for Health

about us

Electronics:

The Silver Pulser is designed to the highest standards.
Our electronic design is unique and efficient making the unit very portable and light-weight.
There's even a provision for adding an external power source to save on batteries when making Ionic/Colloidal Silver,
such as an AC-DC Wall Adaptor which you can purchase from any electronic store.

Specifications:

Battery Voltage: 9 Volts DC Alkaline Battery
Optional Input Voltage: 6 - 12 Volts DC @500mA Wall Transformer/Adapter, Automobile Battery, or Solar Panel.
Output Voltage at Colloidal Silver Wires: 31 Volts DC, (+/- 1 Volt) Constant-Voltage Output
Output Current at Colloidal Silver Wires: 1.5 milliamps (+/- 0.5ma) Constant-Current Output
Ionic-Colloid Silver Production: 5 - 8ppm (parts per million) for 2 hours for 16 ounces distilled water.
Ionic-Colloid Silver Particle Size: Mostly ionic, with colloidal particles in the range of 0.005 - 0.015 microns when made as directed.
Ionic-Colloid Silver Colour: Clear or Pale Gold.
Silver Wire Life: Can make many gallons ionic/colloidal silver per set of Fine Silver Wires, when made as directed.
Output Voltage at Stimulator Probes: 31 Volts (Peak per Cycle, 62 Volts Peak-Peak) Bi-Phasic at ~3.92 Hertz (cycles per second) +/- 1 Hz.
Output Current at Stimulator Probes: ~12 milliamps maximum when probes shorted and Control Knob on full intensity.
Fine Silver Wires are 14 AWG (1.63mm or 0.064" dia.) x 8" long (20 cm) and are constructed of only Pure Fine (.9999 pure) Silver Wire.
Bio-Stimulator Probes are 1/8" diameter x 1.25" long (3mm diameter x 3.8 cm long).
Weight of The Silver Pulser unit is only a few ounces - very lightweight.

International Voltage: (220 or 240 Volt Mains) Requirements:

The Silver Pulser can be operated by an external power source like an AC-DC Wall Adaptor, Automobile Battery, or Solar Panel. If you wish to power the Silver Pulser with a wall transformer, your options are:

Purchase SOTA's International & Universal Wall Adaptor. Please see our Products page for details.

Purchase a local Wall Adaptor with: Input 220VAC or 240VAC, 50 Hz Mains, 6-12 Volt DC output, 500mA (milli-amps) or more, Centre Positive, 2.1mm Plug.

The Silver Pulser may also be operated from a 12 Volt DC Battery like an automobile cigarette lighter. You will need to purchase an adapter cord which plugs into the cigarette lighter and has a Centre Positive, 2.1mm Plug. Radio Shack usually has these Adapters.

Warranty:

The Silver Pulser has a full 3 Year Parts and Labour Warranty on all internal components.
